A pressing capacity of 200 tons suitable for punching, flattening/bending metals, dismantling gears/liners/bearings, etc.

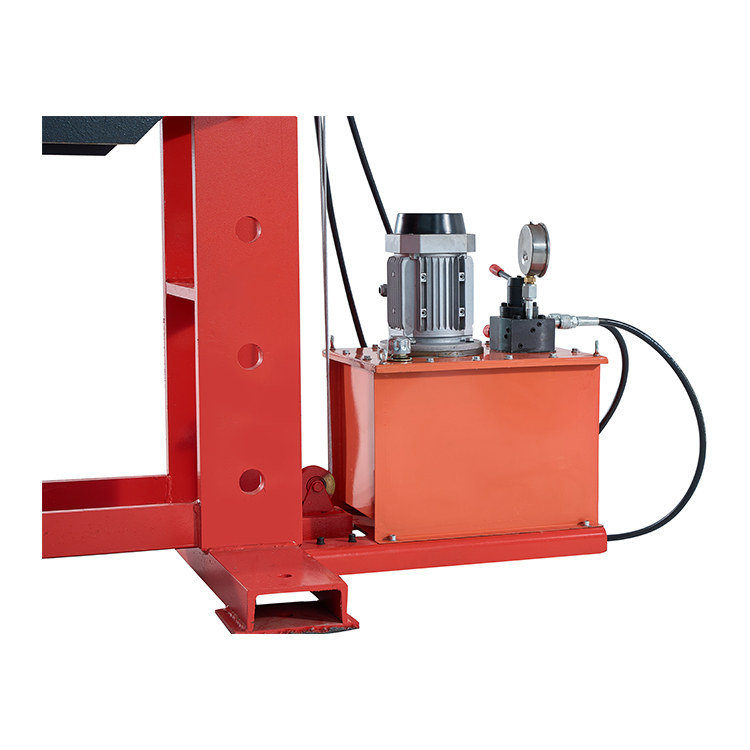

Dual hydraulic cylinders operate pneumatically and manually, allowing for complete control, stable plunger speed, and smooth overall workflow.

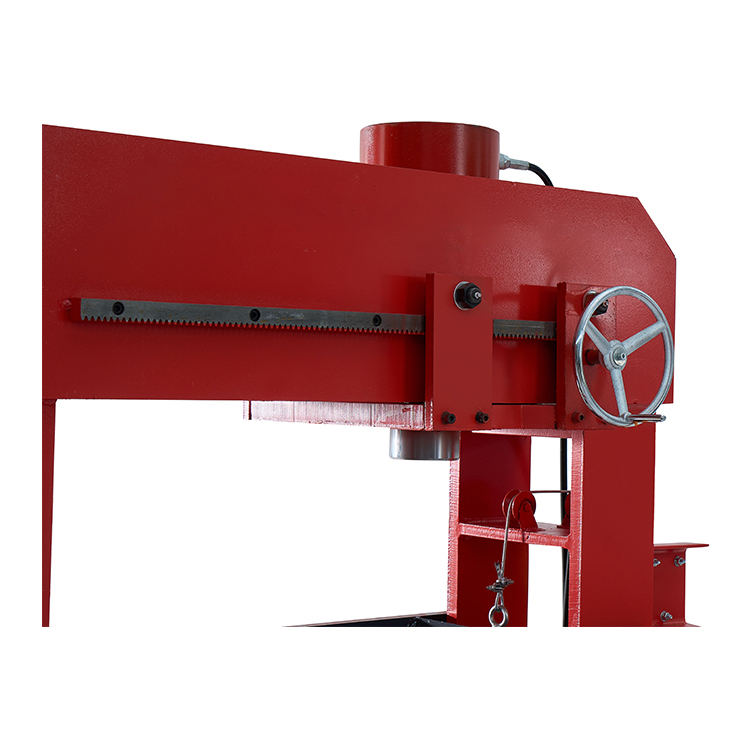

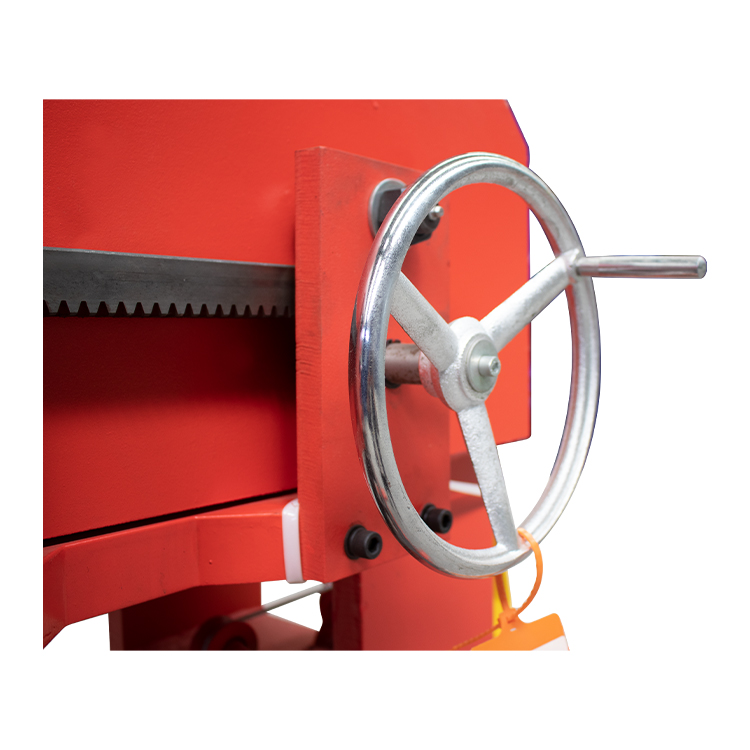

Left and right sliding block motion provides multiple working positions, while dual springs assist in piston rod retraction.

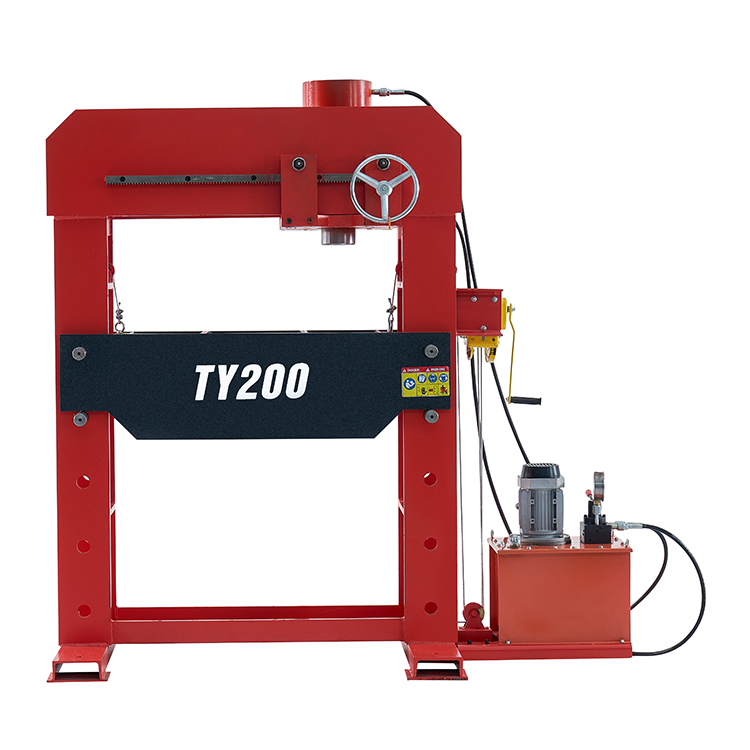

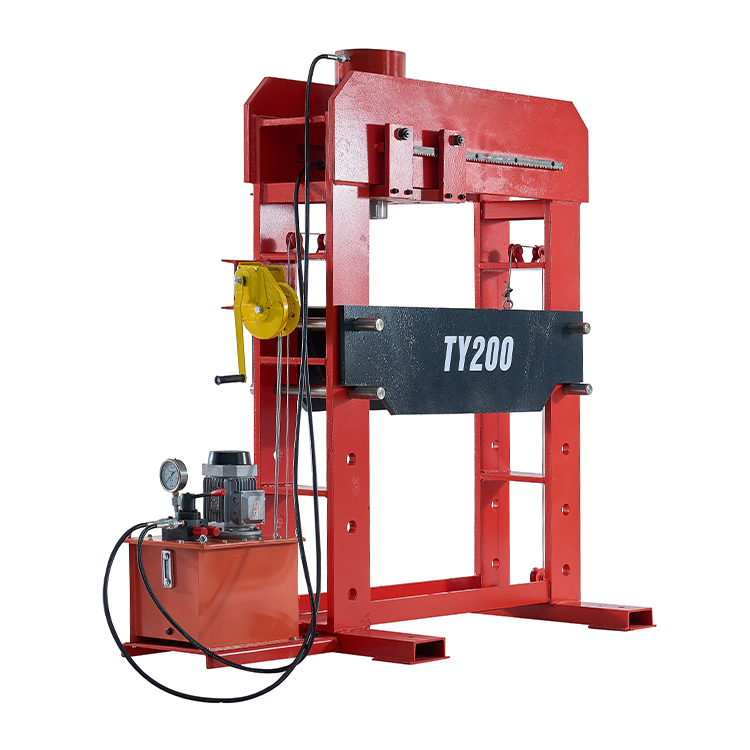

The sturdy and fully welded H-shaped frame enhances rigidity and durability, suitable for long-term commercial use in any workshop environment.

Oil level gauges in both US and metric tons allow for accurate and consistent pressure monitoring during operation.

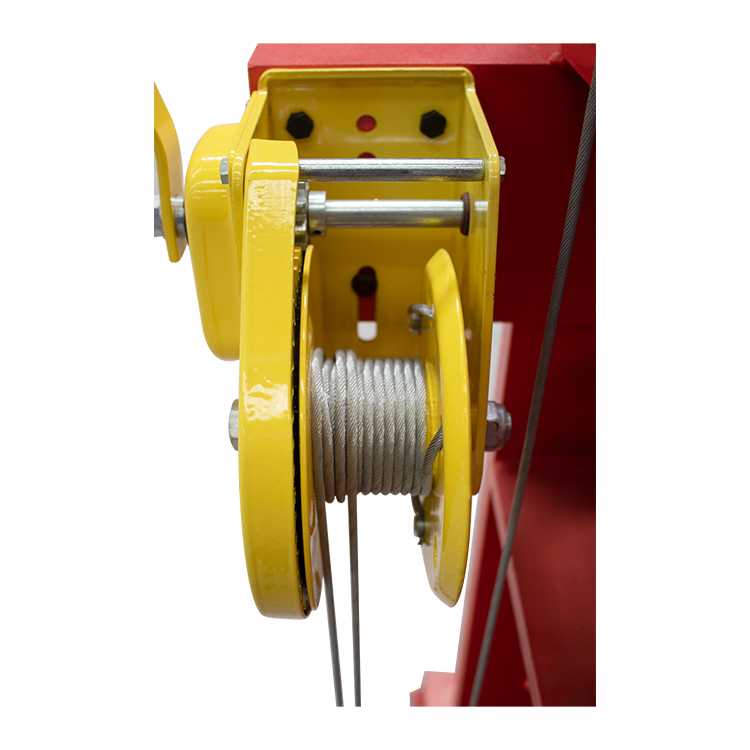

Steel cable crank winch with slip-resistant safety clutch provides ergonomic relief by eliminating excessive bending and allowing easy up/down of the press bed.

Specifically designed for handling demanding tasks under high pressure; equipped with overload pressure relief valve to prevent exceeding machine capacity.

Machine Dimensions: 59'' x 43.3'' x 78.7'' (Length x Width x Height).

Internal frame width: 13-3/4”. Internal frame length: 39-3/8”.

Ram stroke: 13-3/4”. Plunger diameter: 4-5/8”.

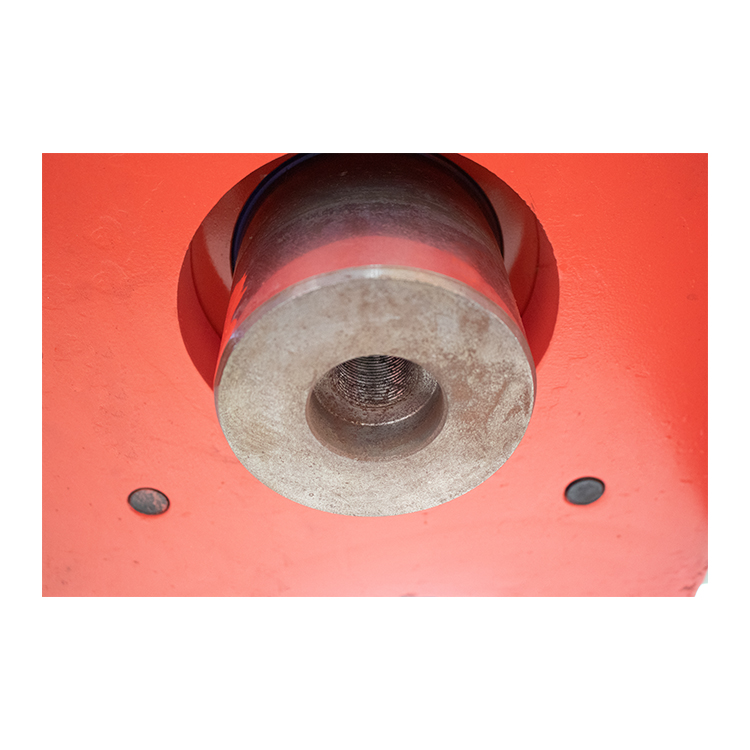

Plunger lateral movement: 13”. Plunger head diameter: 3-7/8”.

Protective cover: 36“ x 23” (Width x Height). Operable carriage opening: 34“ x 16” (Length x Width).

Carriage pin diameter: 2-1/4”. Exhaust pressure: 105-115%.

Maximum pump pressure: 8500 PSI. Pressure gauge accurate to +/- 2.5%. Maximum allowable workpiece height: 37”.
