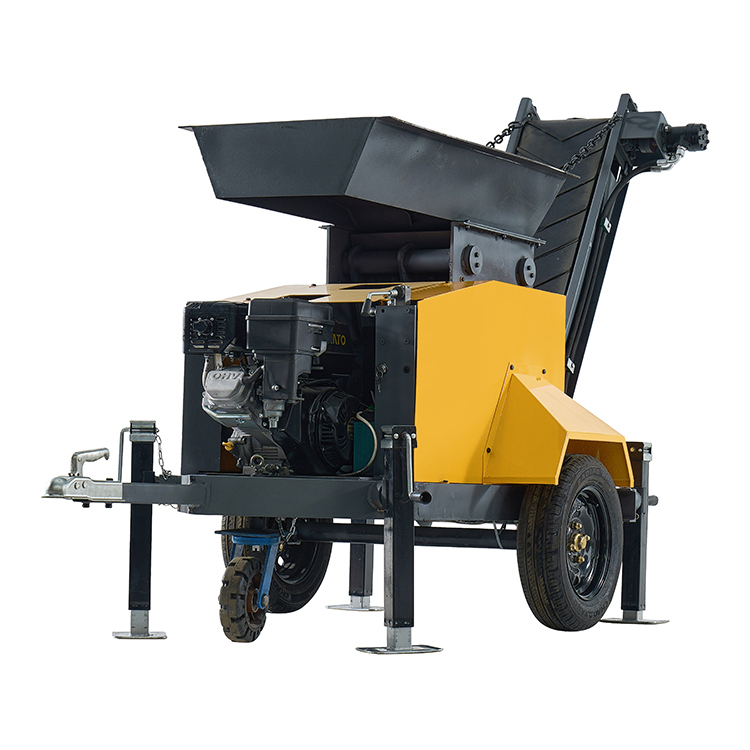

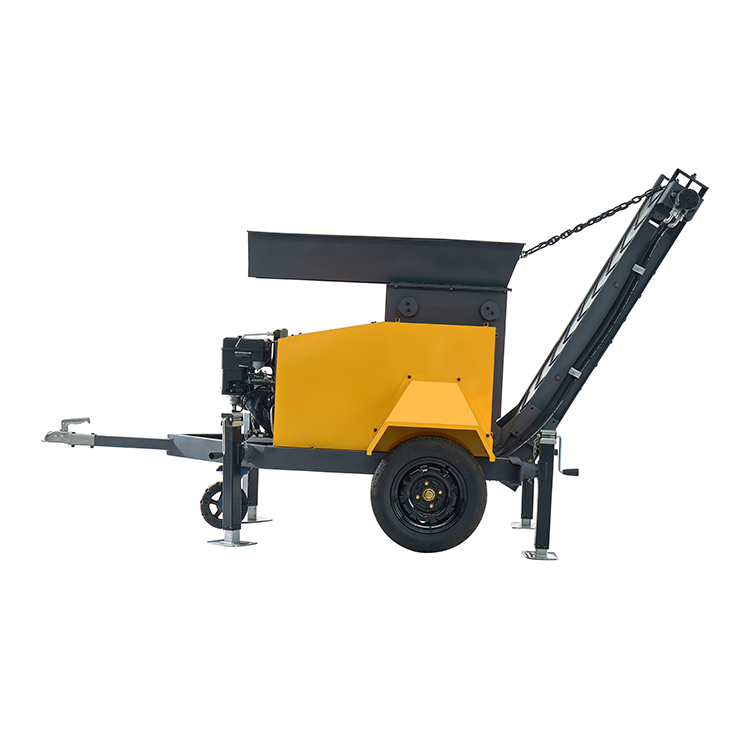

The QSP135 mobile jaw crusher is equipped with two tires, allowing for towing and movement across various terrains.

Suitable for use in households, farms, workshops, processing sites, etc.

Powered by a robust and durable 16 horsepower RATO R500 engine, it can crush 6 tons per hour.

It features 4 support legs, adjustable in height according to needs, ensuring stability even on rough terrain, making it very convenient and easy to operate.

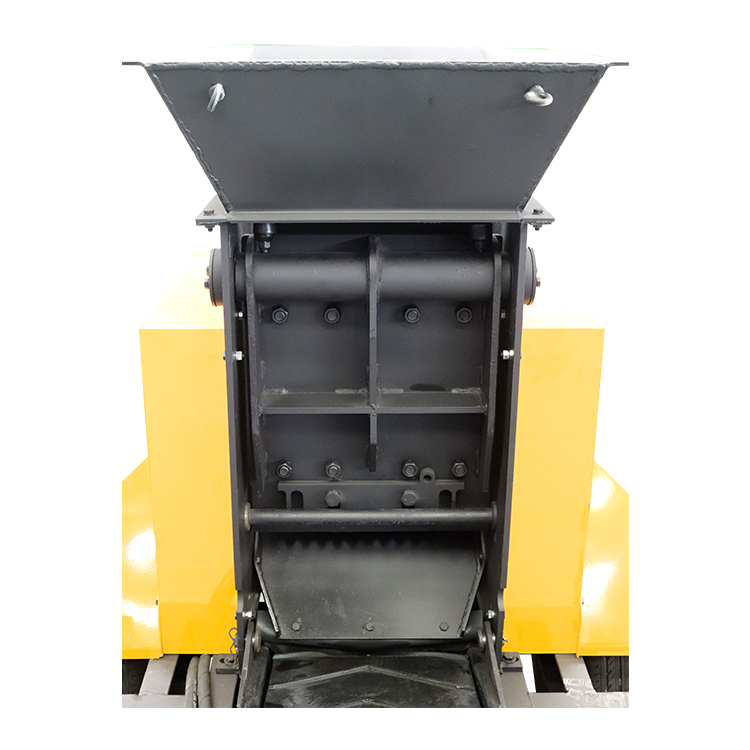

Dimensions: 116.14″ x 44.1″ x 68.11″ (Length × Width × Height). Crusher weight: 1910 lbs, jaw aperture of 400mm × 150mm.

Output size adjustable from 120mm to 20mm. Engine Type: Single cylinder, four-stroke, OHV.

Displacement: 500cc. Compression Ratio: 8.5:1. Net Power: 11kw/3600rpm. Net Torque: 31N.m/2500rpm.

Crankshaft Rotation Direction: Counterclockwise (Horizontal shaft output). Ignition System: Electronic ignition.

Starting System: Manual/Electric start. Lubrication System: Forced splash. Carburetor: Float type.

Governor System: Centrifugal governor. Air Filter: Dual-layer filter (paper plus foam). Engine Oil Capacity: 1.2L. Fuel Tank Capacity (max): 6.9L. EPA Standards.
