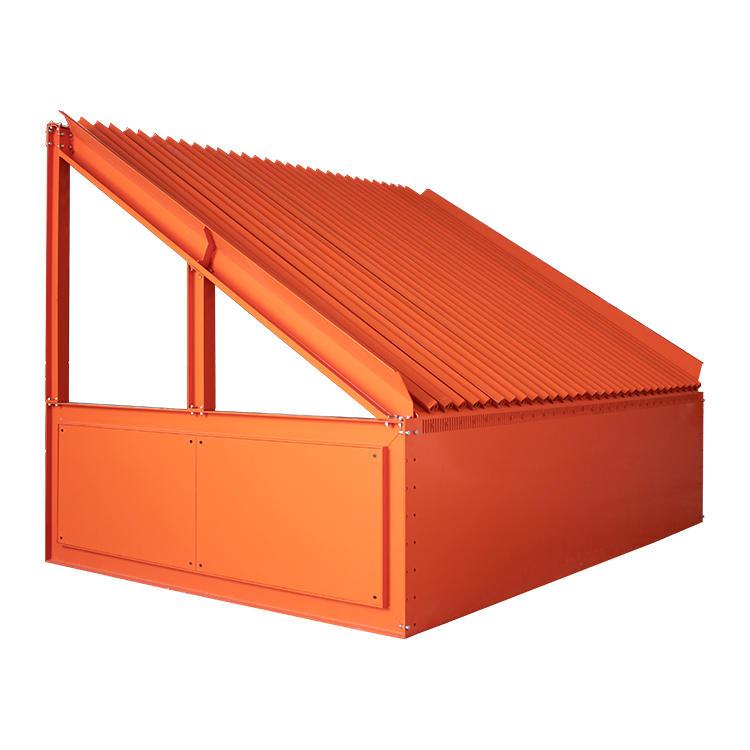

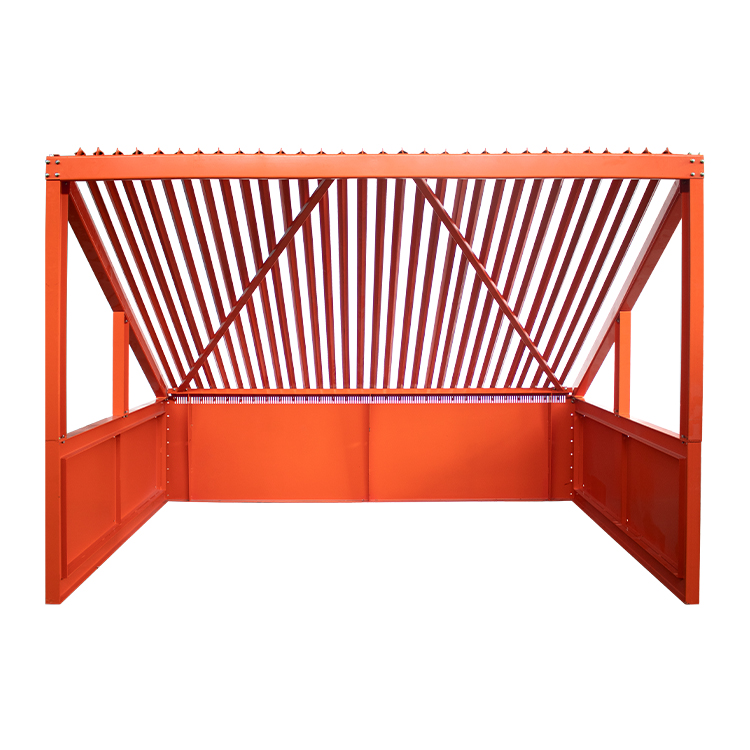

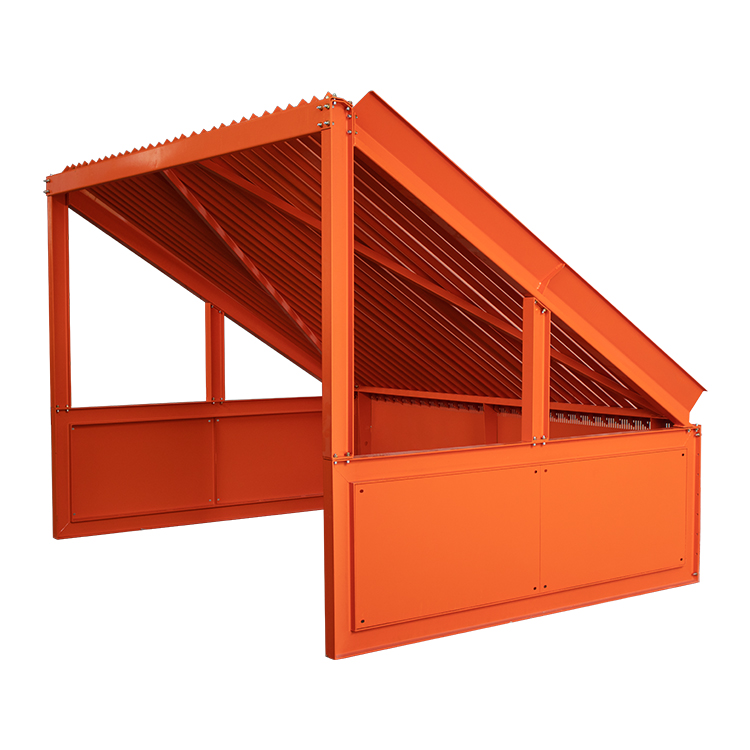

Applied in open-pit mining, demolition, and landscaping industries. The rock screen boasts the advantage of being equipped with 36 screening bars, elevating its screening capacity and versatility.

With Adjustable Quick-Insert Slotted Screening Bars, it offers spacing as close as 1” (standard at 3").

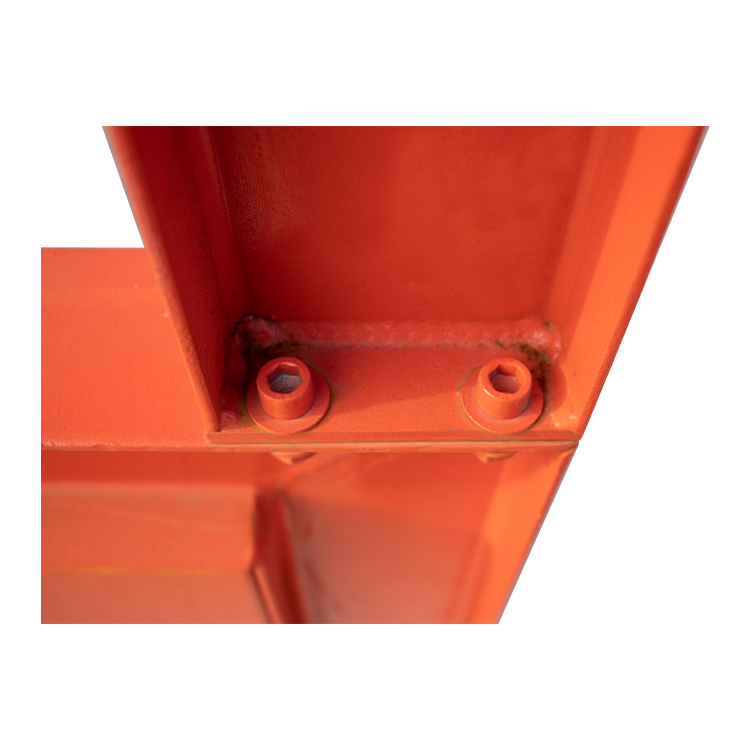

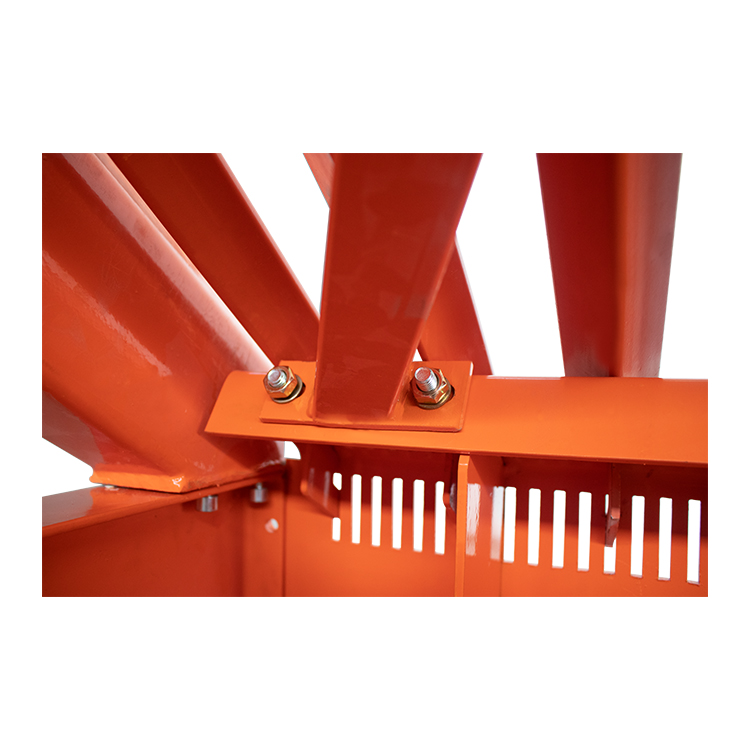

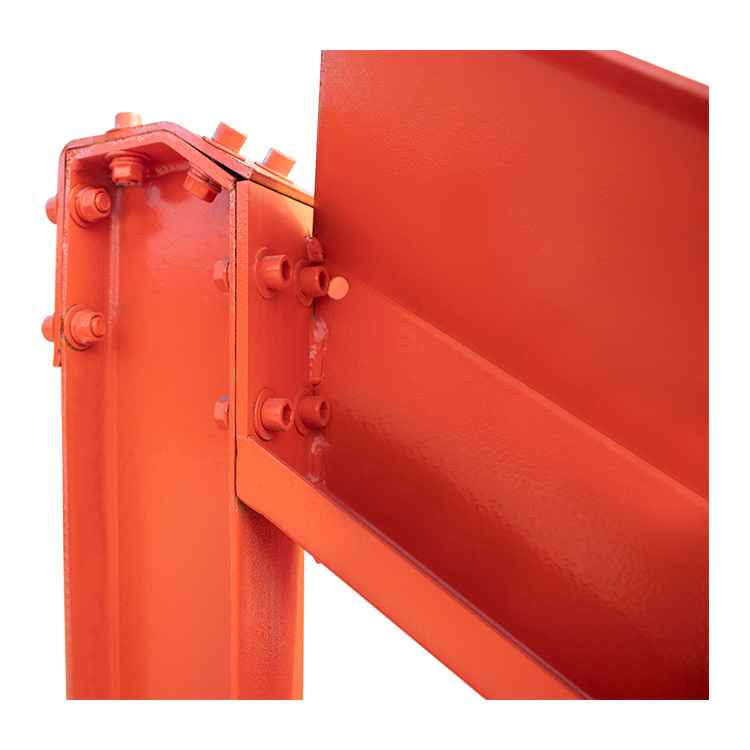

A 37° slope streamlines rock and debris removal from the work area. The main frame, built with 4” x 4” H-beams and square tubing, guarantees robustness.

The 10’ x 7’ sift accepting area efficiently isolates the final product from waste. Industrial strength with a powder-coated finish for rust resistance.

Structural dimensions: 10' (Length) x 7-¼’ (Width) x 7-½’ (Height). Average load capacity: 5000 pound. Main frame:4" x 4" I-beam steel columns. 4" x 4" cross square tube sleeves.

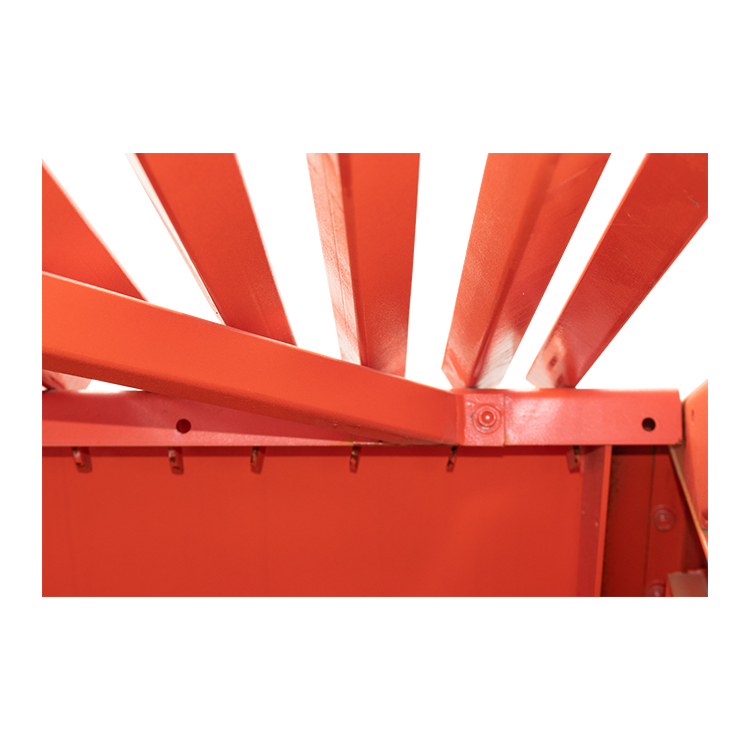

Side walls and front wall steel plates: 10 GA. Deck reinforcement: 1-¾" x 1-¾" square pipes, length 9', 8 GA. Standard reinforcement spacing: 3". Standard number of reinforcements: 25 (3" spacing).

Minimum reinforcement spacing: 1" (additional deck reinforcement required).

Maximum number of reinforcements: 36 (1" spacing). Maximum reinforcement spacing capacity: 5". Opening for first and last deck bars: 2-¾".

Slope angle: 37°. Spare deck bars sold separately. Assembly required. Weight: 1600 pounds (approx.).
