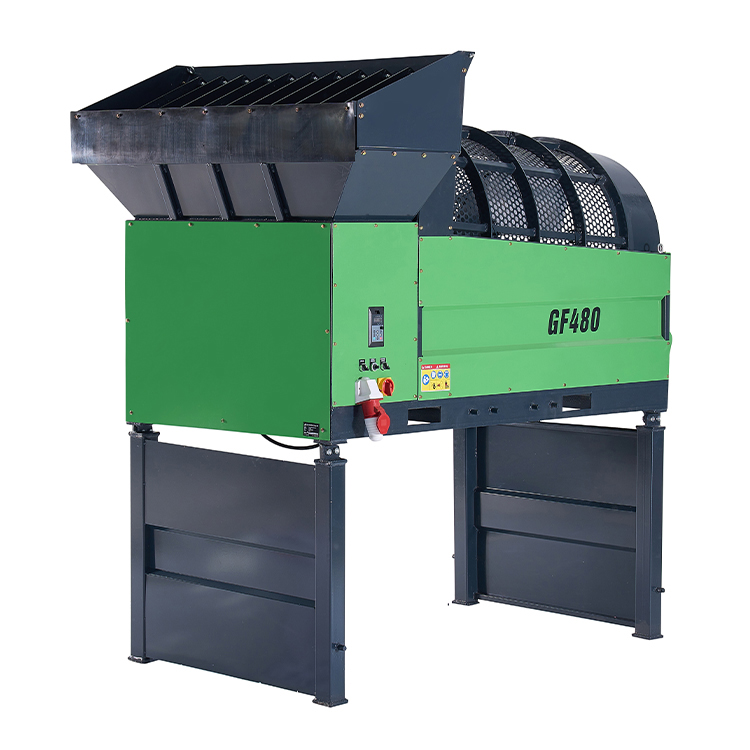

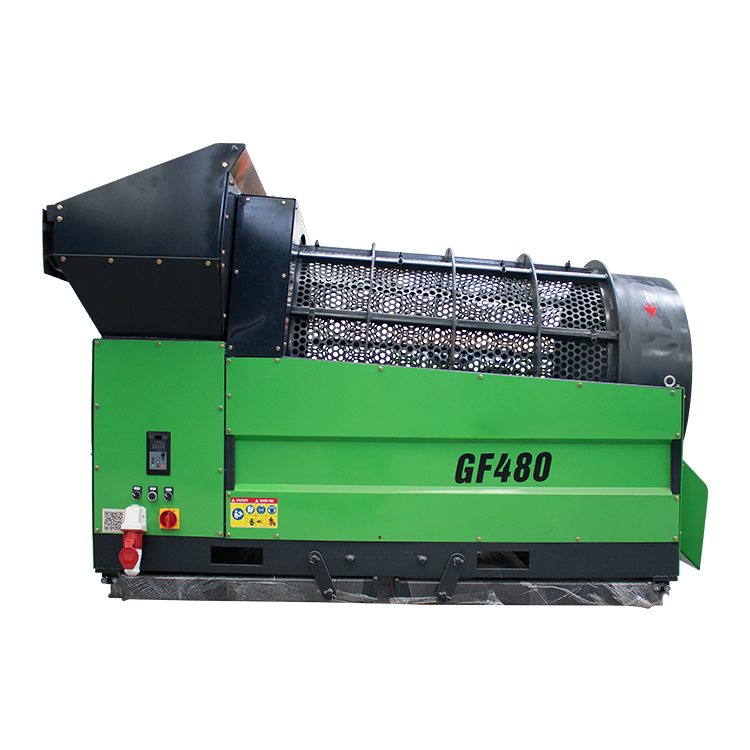

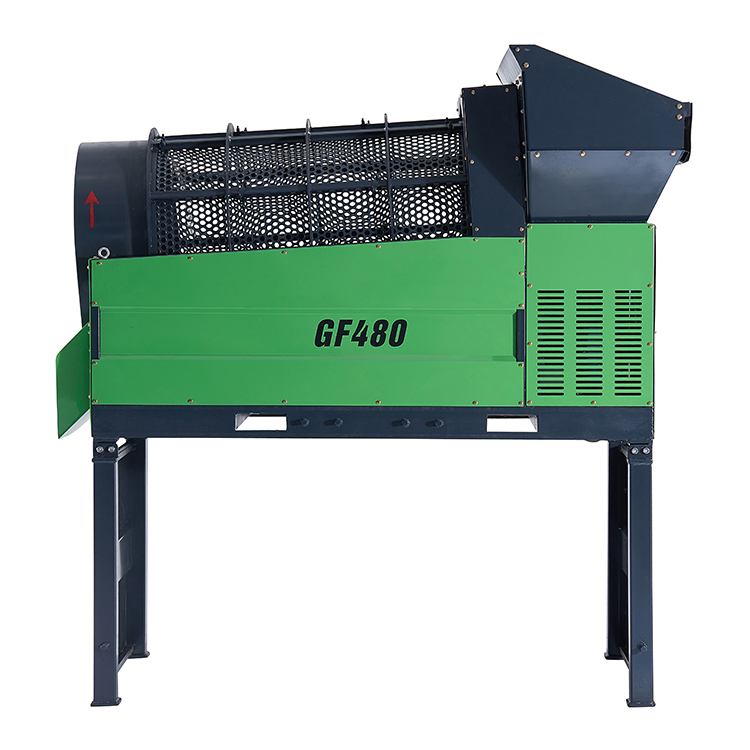

A brand new model of compact trommel screen, suitable for loaders or excavators.Drum diameter: 48". Variable drum speed to accommodate various materials.

Powered by a robust 480V, 60Hz, 4 kW variable-speed three-phase electric motor, suitable for plugging into a three-phase outlet or generator.

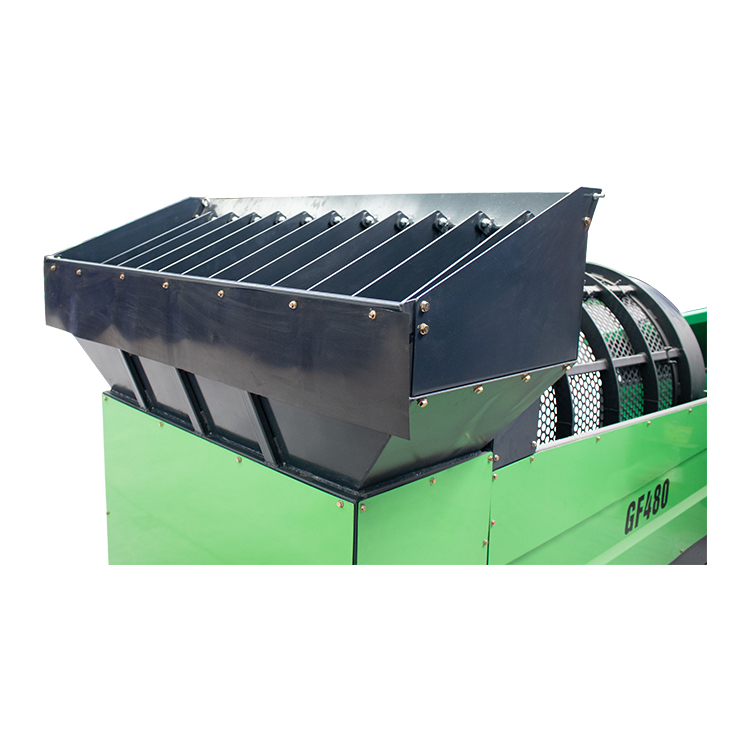

Hopper equipped with an integrated grizzly, feeding materials into the drum. Vibrating motors installed in the hopper prevent material from sticking.

Ideal for a wide range of materials such as wood chips, peat, topsoil, aggregates, and compost. Forklift holes integrated into the main frame for easy relocation. Capacity approximately 20-40 tons per hour.

Dimensions: 83.86″× 43.3″ × 91.34″ (Length x Width x Height).

Screening Area: 6.5 square meters.

Capacity: 20 - 40 tons/hour.

Maximum Bucket Width: 5' 10.9".

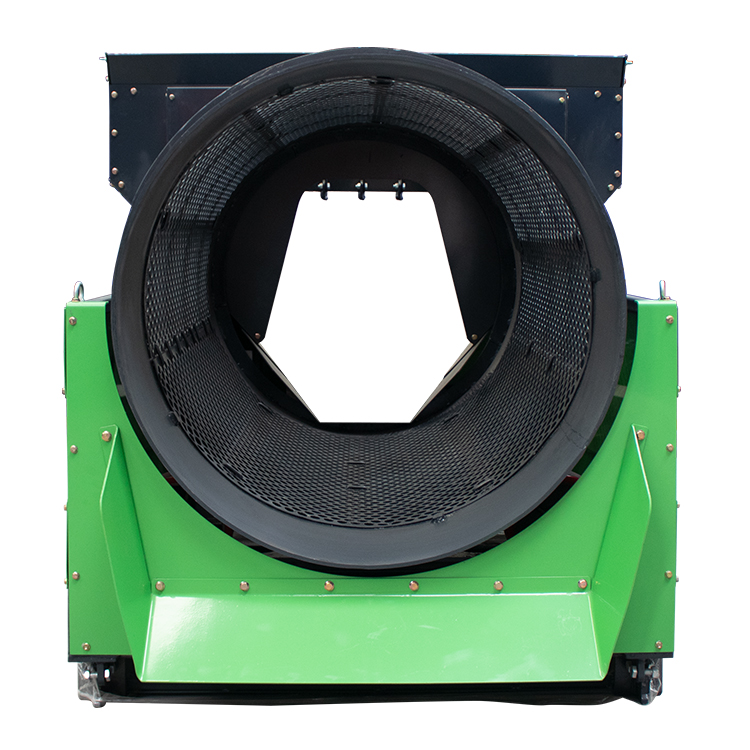

Drum Diameter: 48 inches.

Power Input: 3 x 480V, 4 kW, 60Hz.

Weight: Approximately 1855 pounds.

Screen Mesh Size: 3/4 inches.

Drum Speed: 1-240 RPM.

Vibrating Motor Power: 0.8 kW.
